Aluminum Spigot Truss (GE34-290x290mm)

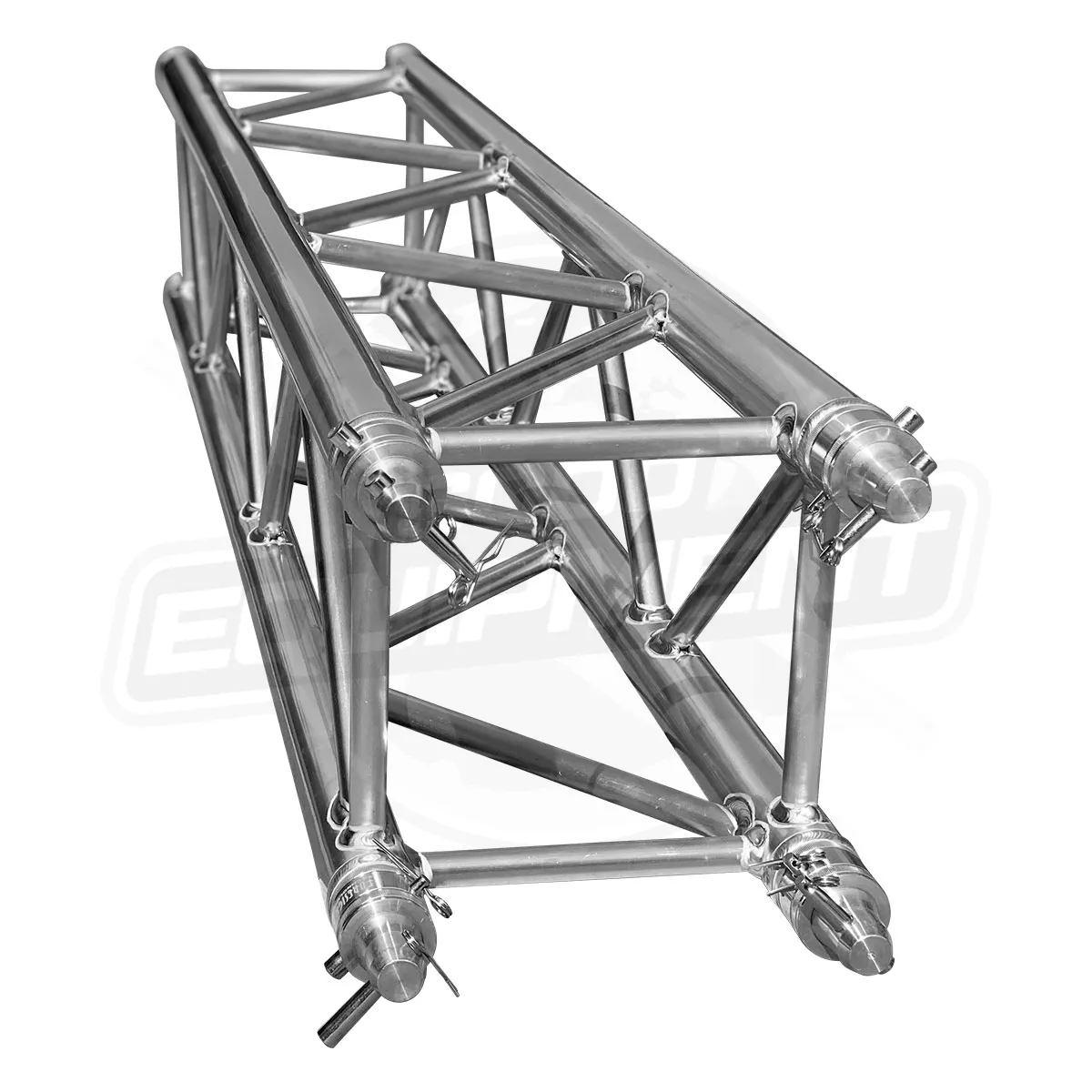

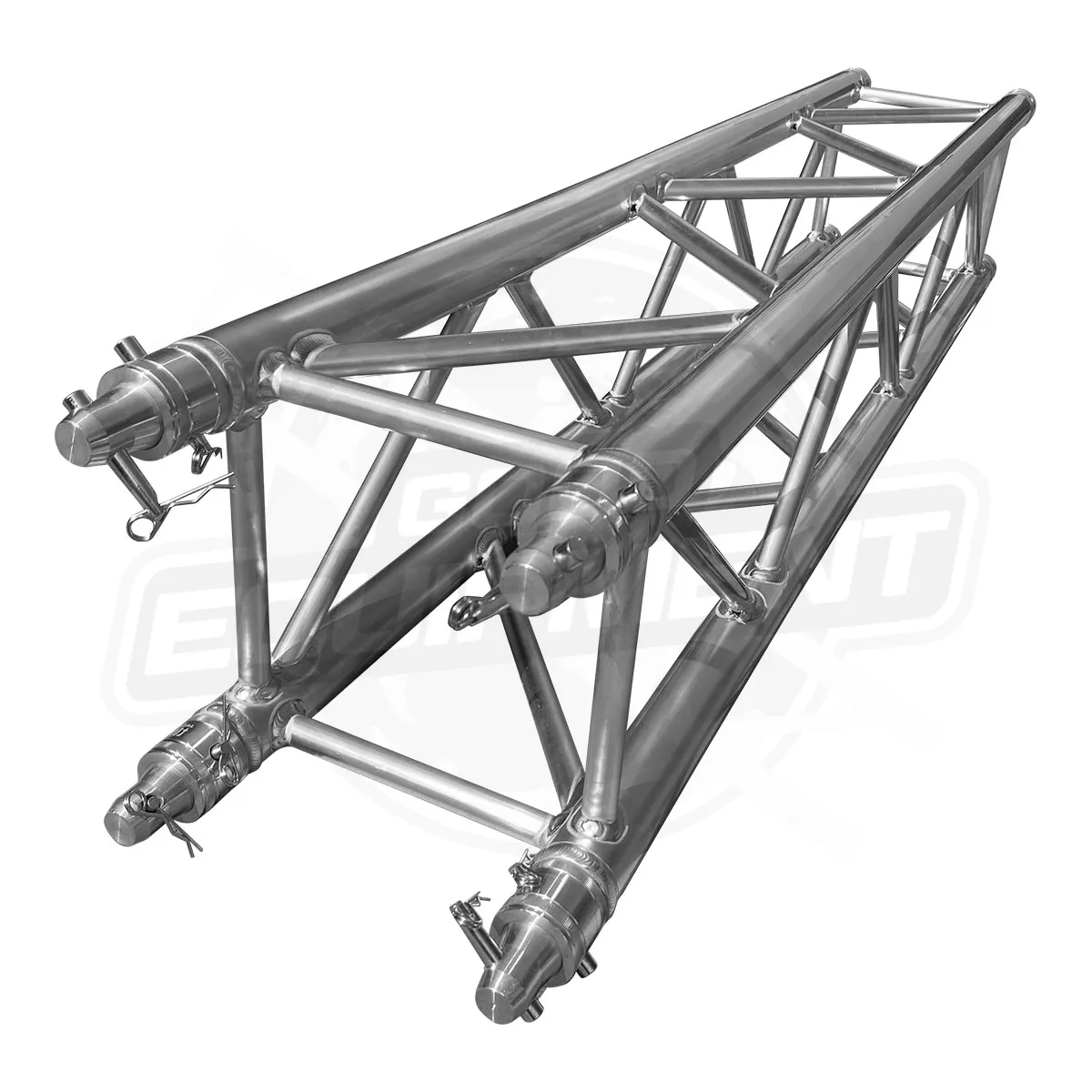

GE34 is a 4-point truss system. This provides optimum volume and load capacity for its construction size and a tube diameter of 50mm. This system is connected via a special conical connector system,which is joined together to a complete form fit by means of a copper hammer, creating optimal traction.

Certificate:

Lightweight Design

GE34 finds application in trade fairs and shops, as well as in the event industry in general. It is also characterised by a minimum transport volume and the special lightweight design.
The conical connectors are of course included in the scope of delivery – special designs and powder coatings can be carried out at short notice.

Specifications

Pipe Diameter50mm
Wall Thickness2mm
Braces20x2mm
MaterialEN AW 6082 T6
ConnerctorsIncluded
Technical Data

Span
(m)
UDL
(kg/ m)
Deflection
(cm)
CPL(kg)Deflection
(cm)
Point load
in third-point
(kg)
Deflection
(cm)
Point load
in quarter-point
(kg)
Deflection
(cm)
Point load
in fifth-point
(kg)
Deflection
(cm)
长度承重量弯曲度中间点承重量弯曲度三点承重量弯曲度四点承重量弯曲度五点承重量弯曲度
45011.369221.016271.164961.283931.29
53442.37631.645281.934112.093242.09
62413.366492.434552.893463.062743.09
71774.615623.393984.062974.222374.29
81356.064944.513535.422605.562085.68
91067.714405.831672307.11857.28
10859.553957.262858.772058.821669.07
116911.63578.8925810.7618510.7515011.08
125813.8532410.7123612.9716812.8713613.29
134816.2929612.7121615.3915315.1912515.7
144118.9527114.9119918.0314017.7111418.33
153521.8124917.318320.8912820.4410521.18
163024.8822919.916923.9911823.389724.24
172628.1621122.7115727.3210926.538927.52
182331.6519525.7414630.8910029.98231.03
Load Table
CODELENGTHWEIGHT
GE3405050CM4.90KG
GE34100100CM7.50KG
GE34150150CM9.70KG
GE34200200CM12.00KG
GE34250250CM14.00KG
GE34300300CM16.00KG
Weight Table
Download

Truss Accessory

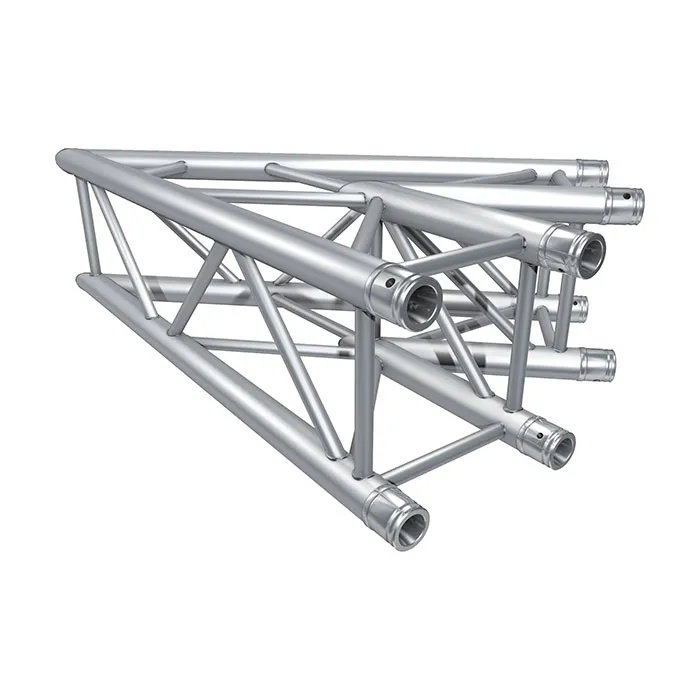

  • 45° 2 WAYS CORNER

    CODE GE34C19

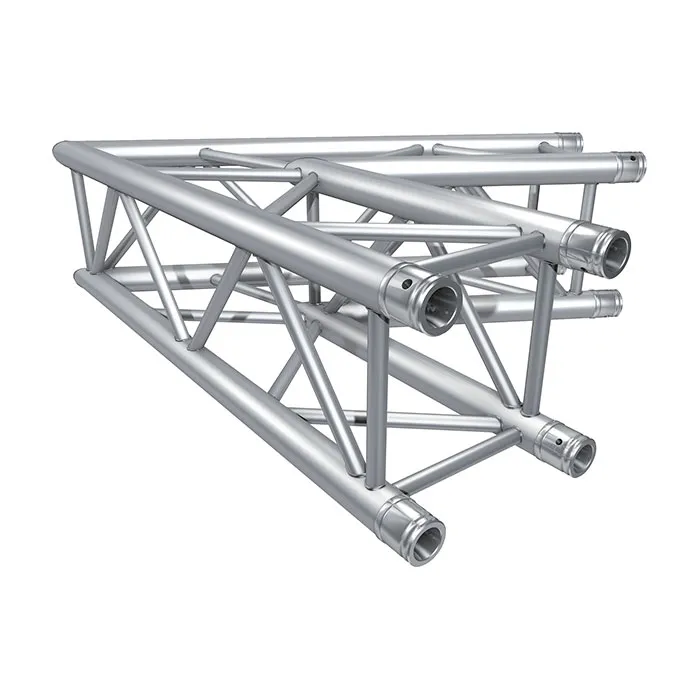

  • 60° 2 WAYS CORNER

    CODE GE34C20

  • 90° 2 WAYS CORNER

    CODE GE34C21

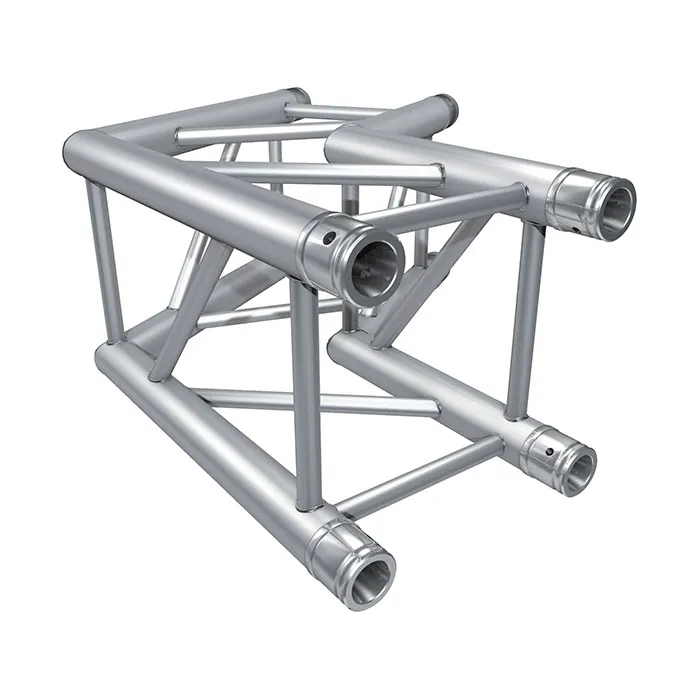

  • 120° 2 WAYS CORNER

    CODE GE34C22

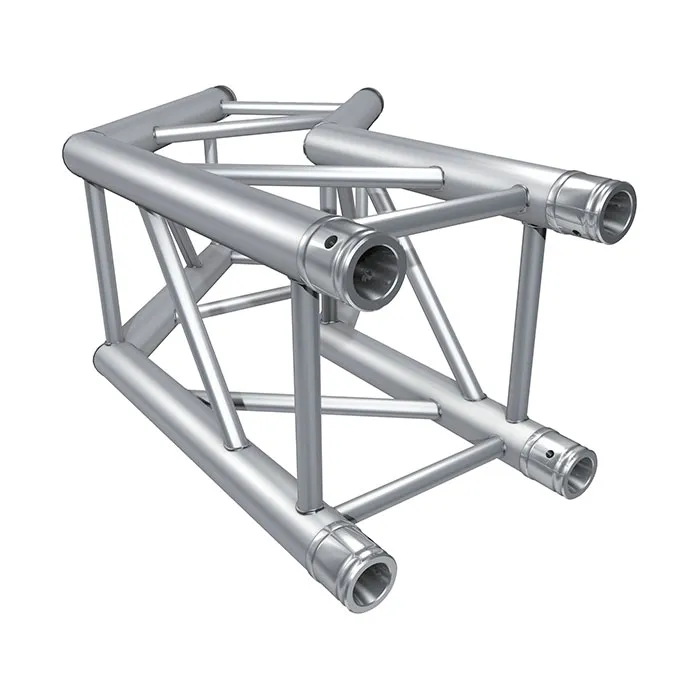

  • 135° 2 WAYS CORNER

    CODE GE34C23

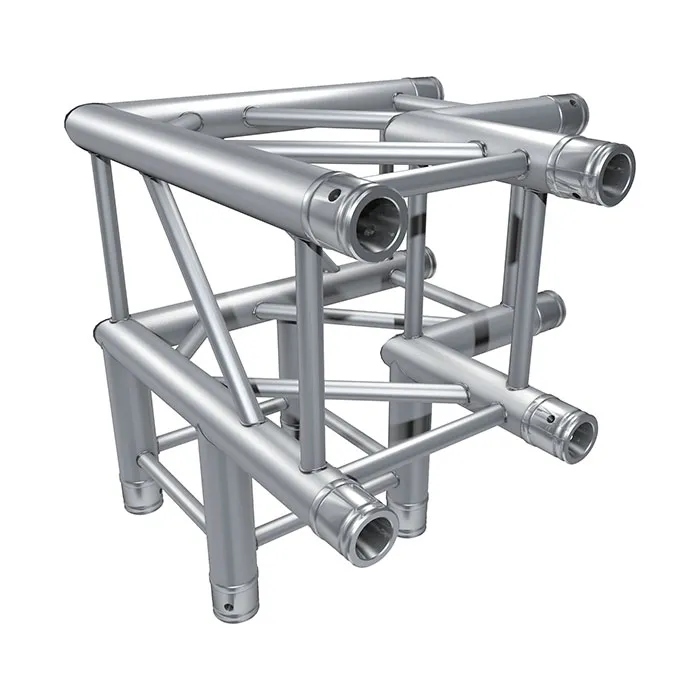

  • 90° 3 WAYS CORNER

    CODE GE34C30

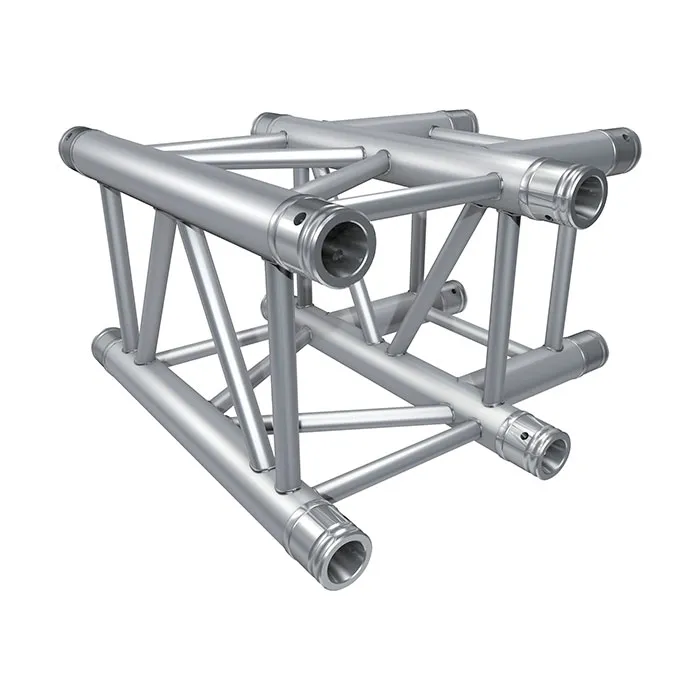

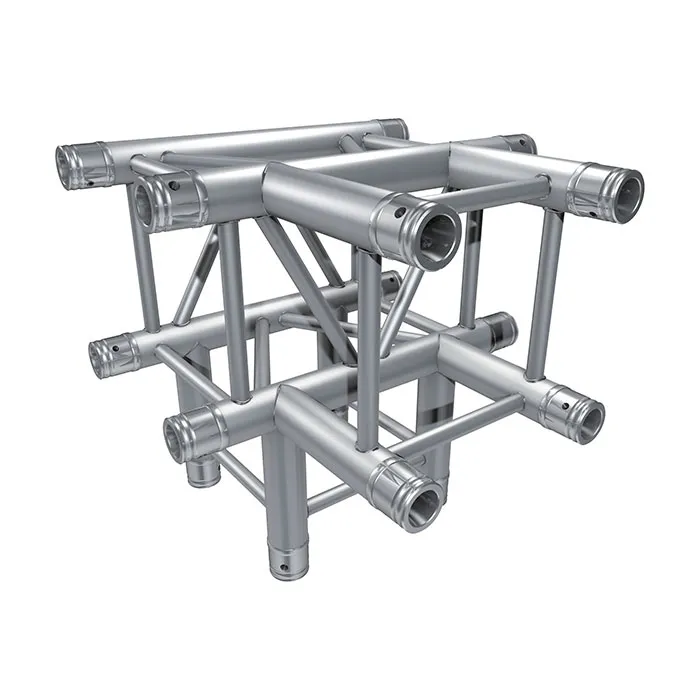

  • 3 WAYS T CORNER

    CODE GE34T35

  • 90° 4 WAYS CORNER

    CODE GE34T40

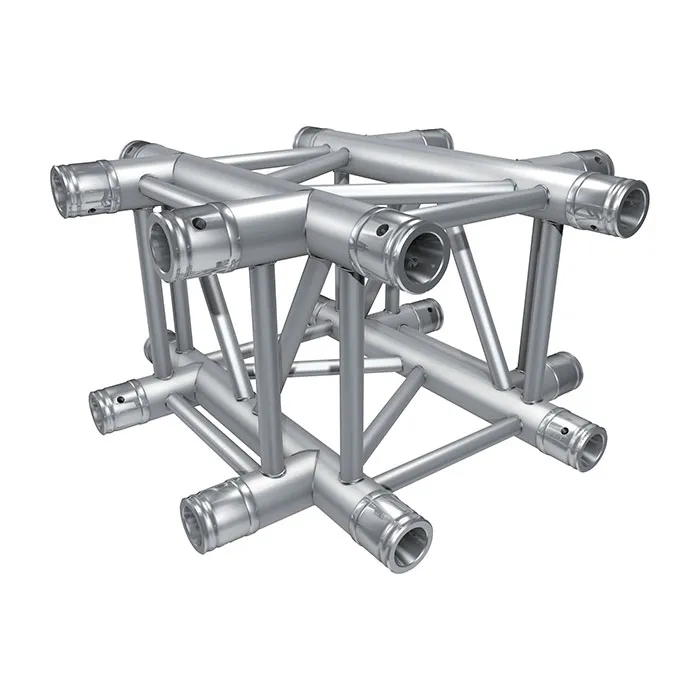

  • 4 WAYS CROSS CORNER

    CODE GE34T41

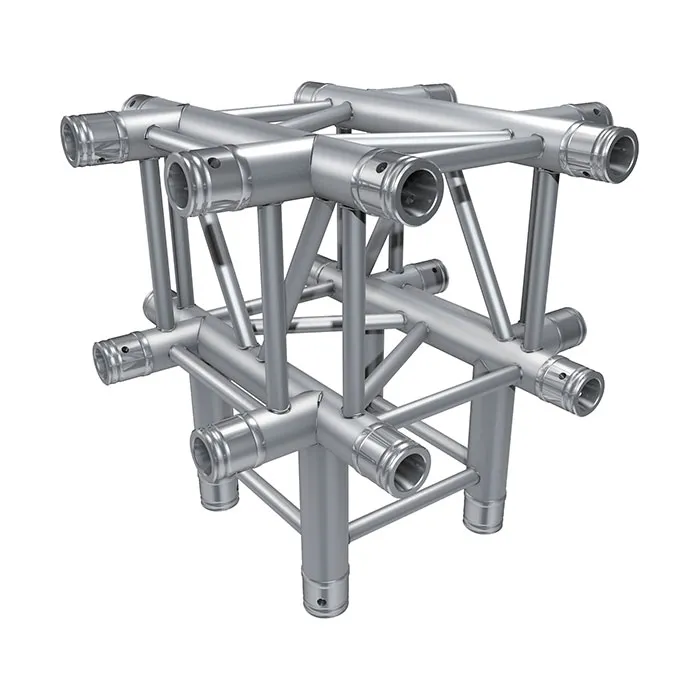

  • 5 WAYS CORNER

    CODE GE34C55

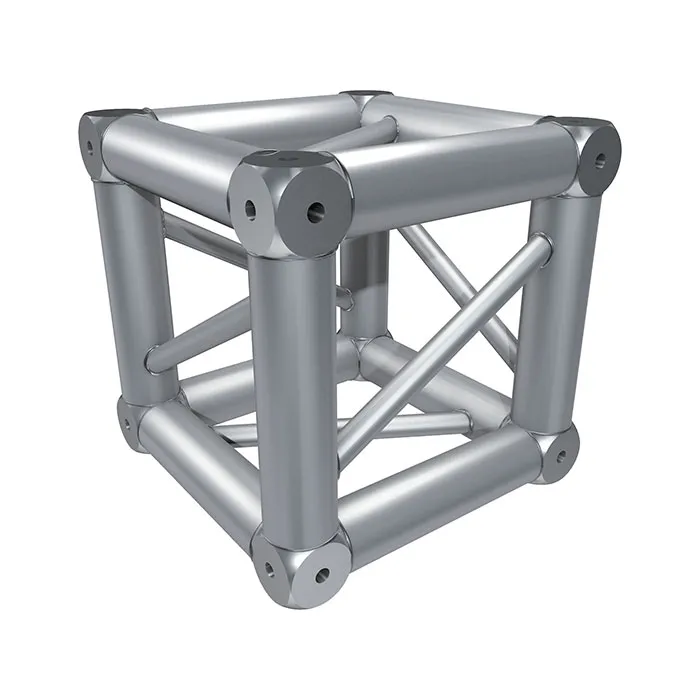

  • BOX CORNER

    CODE GE34BOX

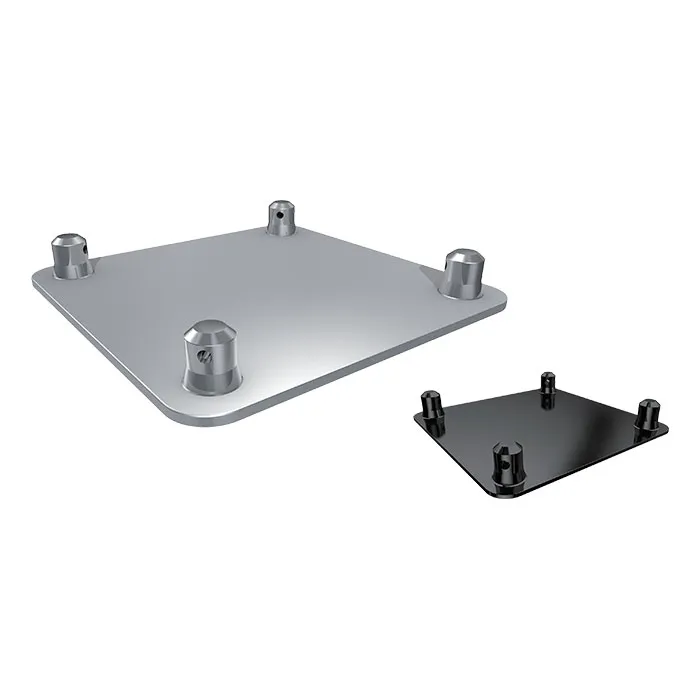

  • BASE PLATE

    CODE GE34BASE

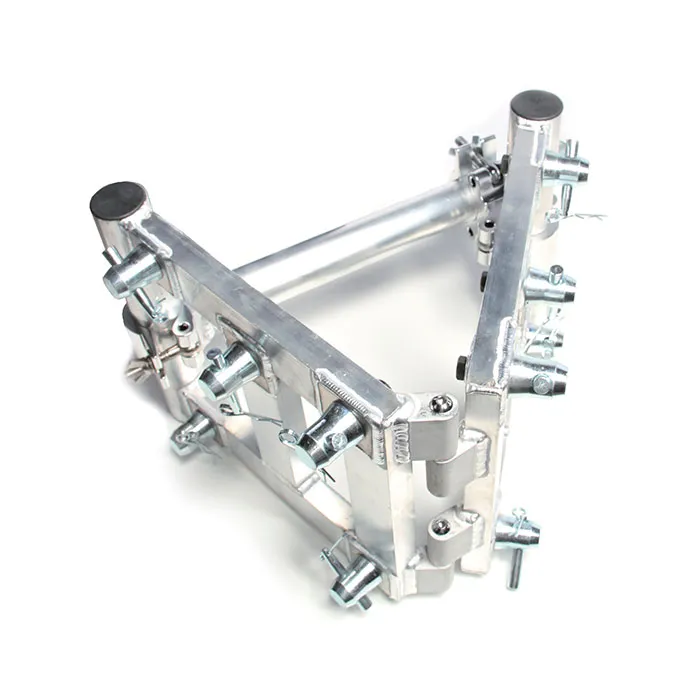

  • FLEXIBLE CORNER

    CODE GE34FC0-180

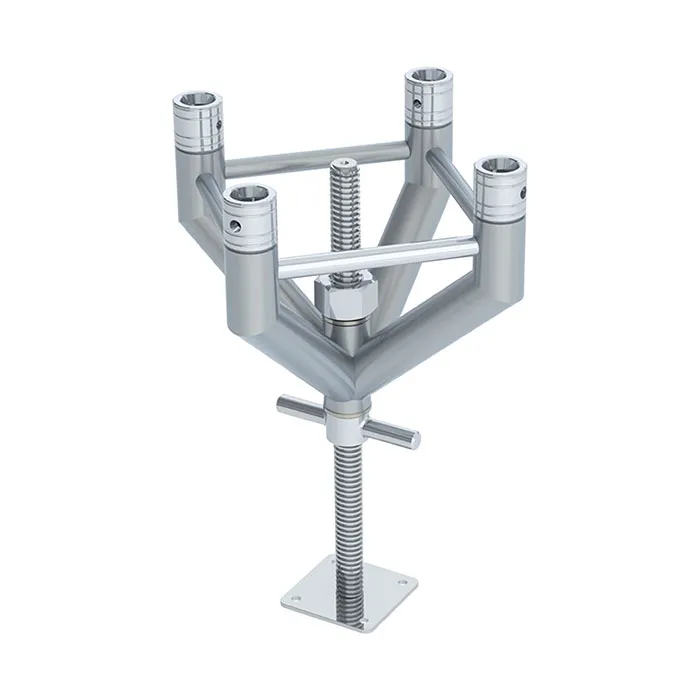

  • SPINDLE

    CODE GE34SD

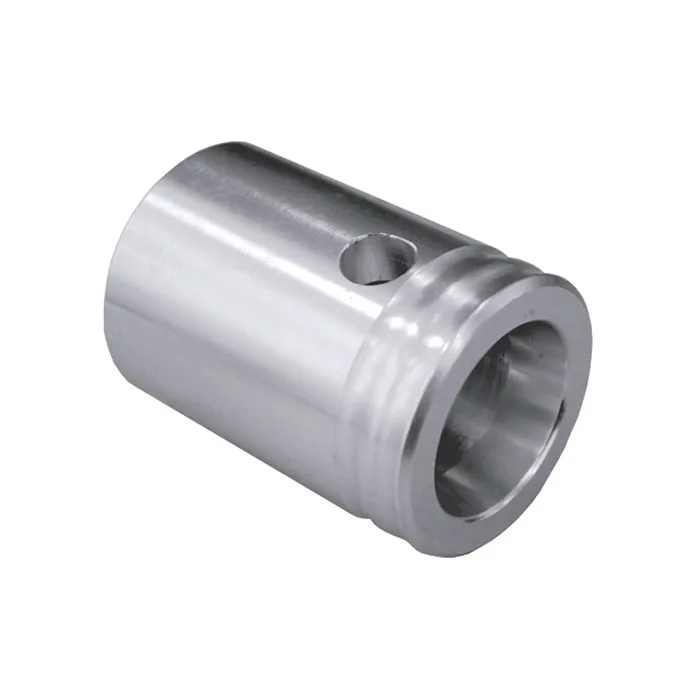

  • BOX SPACER

    CODE GE34BOXS105F CODE GE34BOXS210F

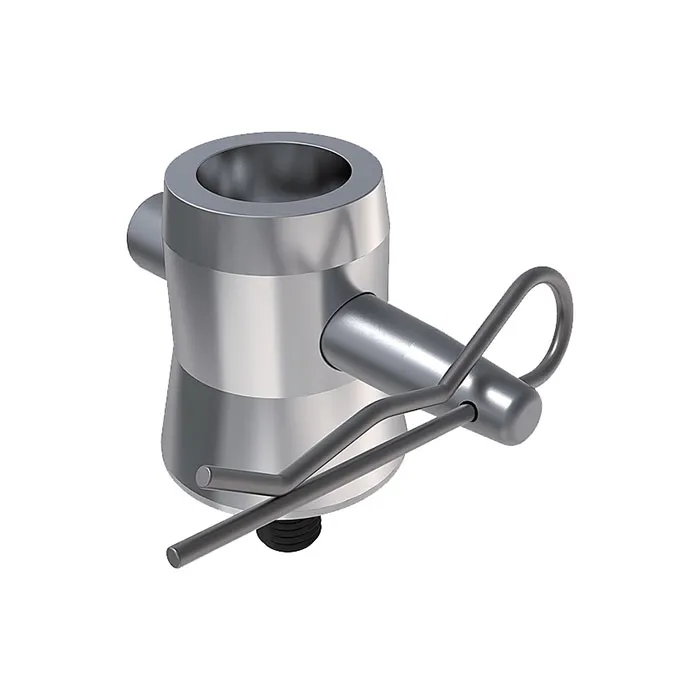

  • BOX HALF CONNECTOR

    CODE GE34BOX-C

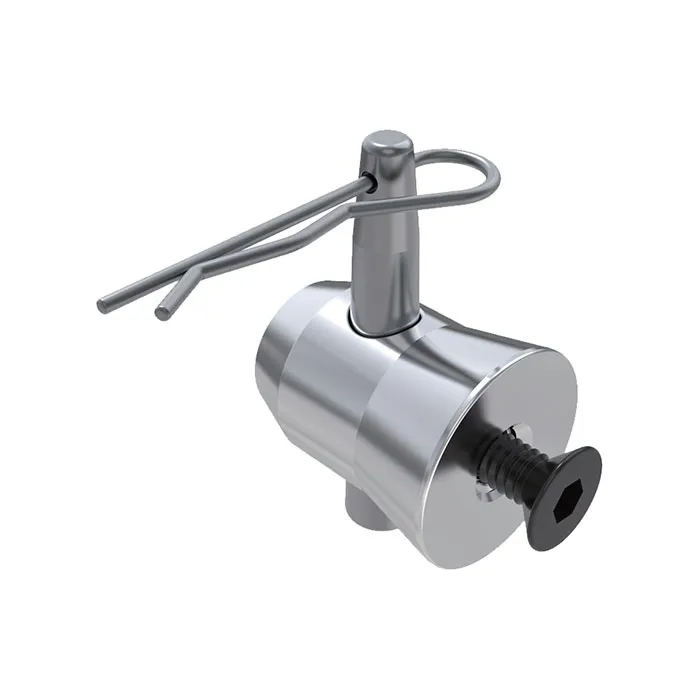

  • BASE HALF CONNECTOR

    CODE 5003(ALUMINUM) CODE 5010(STEEL)

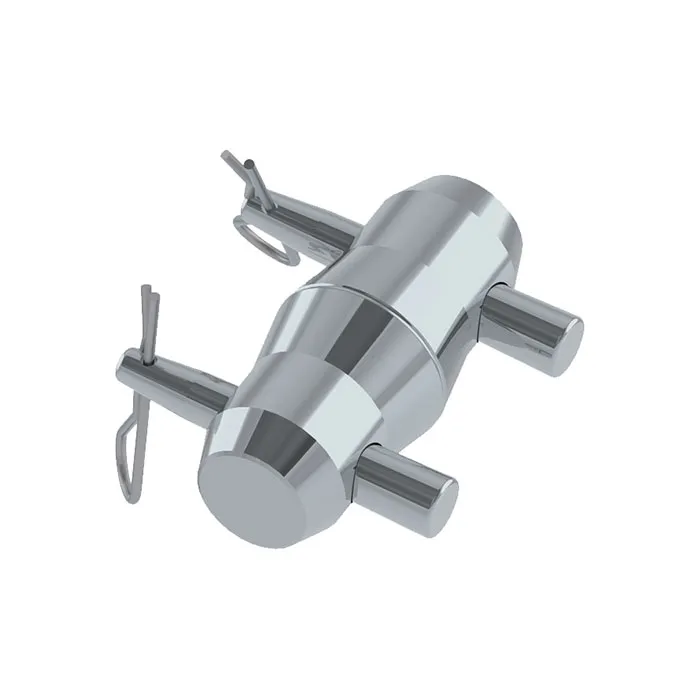

  • CONICAL CONNECTOR

    CODE 5002

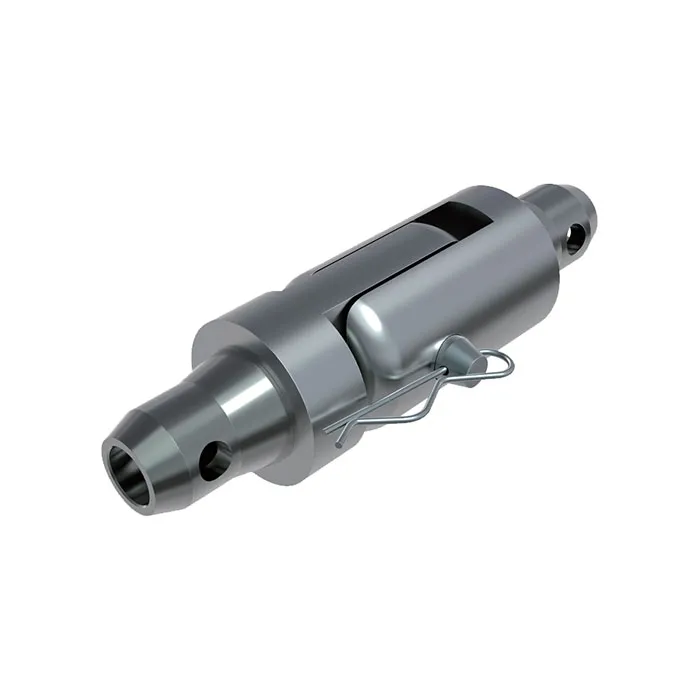

  • CONICAL HINGE

    CODE 5029SR CODE 5029SL

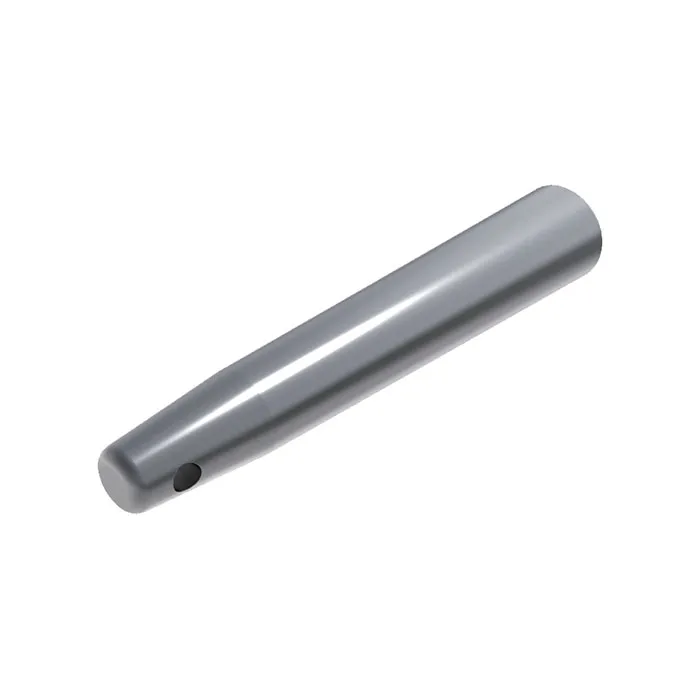

  • PIN

    CODE 5004PIN

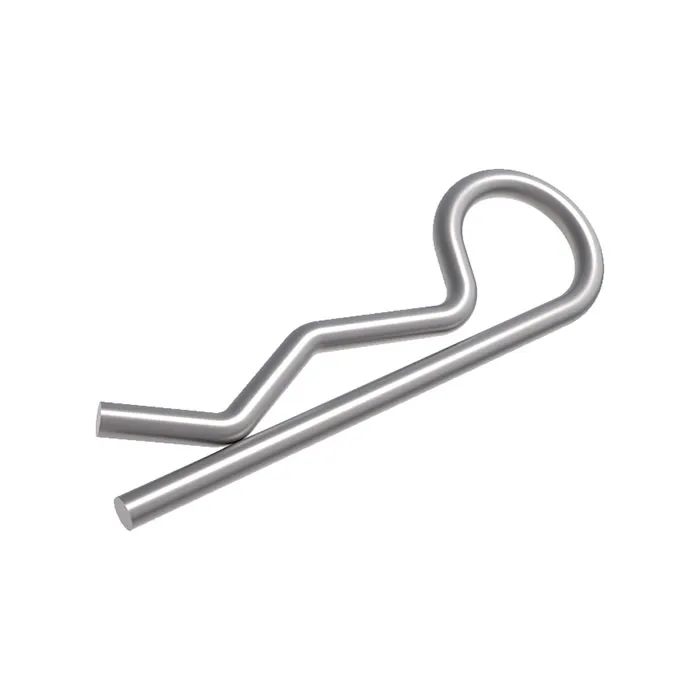

  • R CLIP

    CODE 5004CLIP

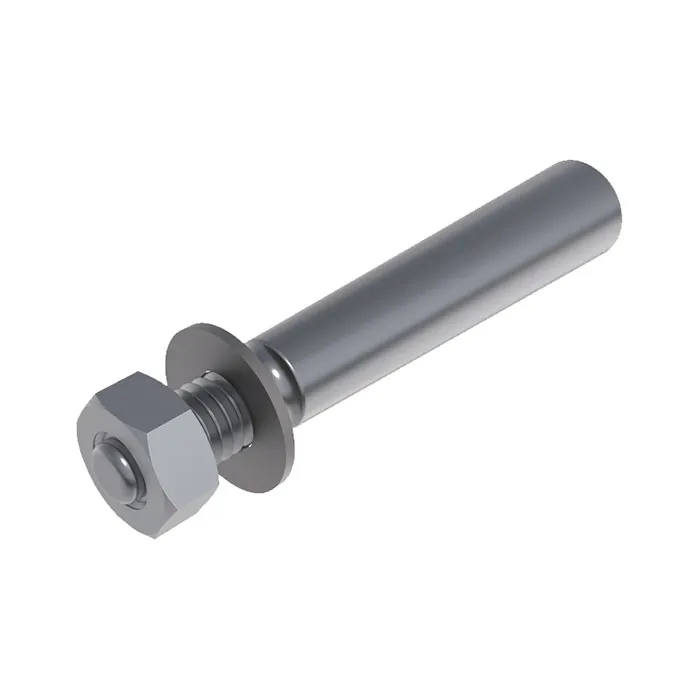

  • PIN & BOLT

    CODE 5005

  • SPACER MALE

    CODE 5019M105 CODE 5020M170 CODE 5021M210

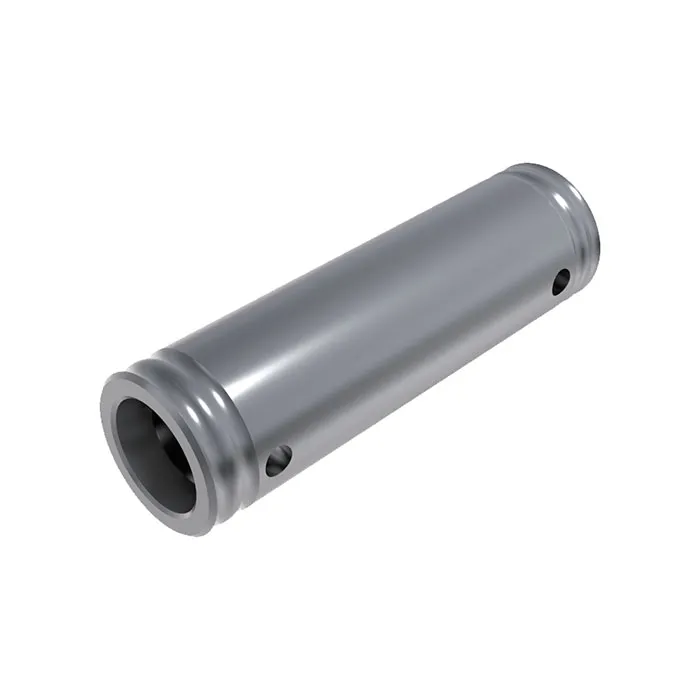

  • SPACER FEMALE

    CODE 5019F105 CODE 5020F170 CODE 5021F210
