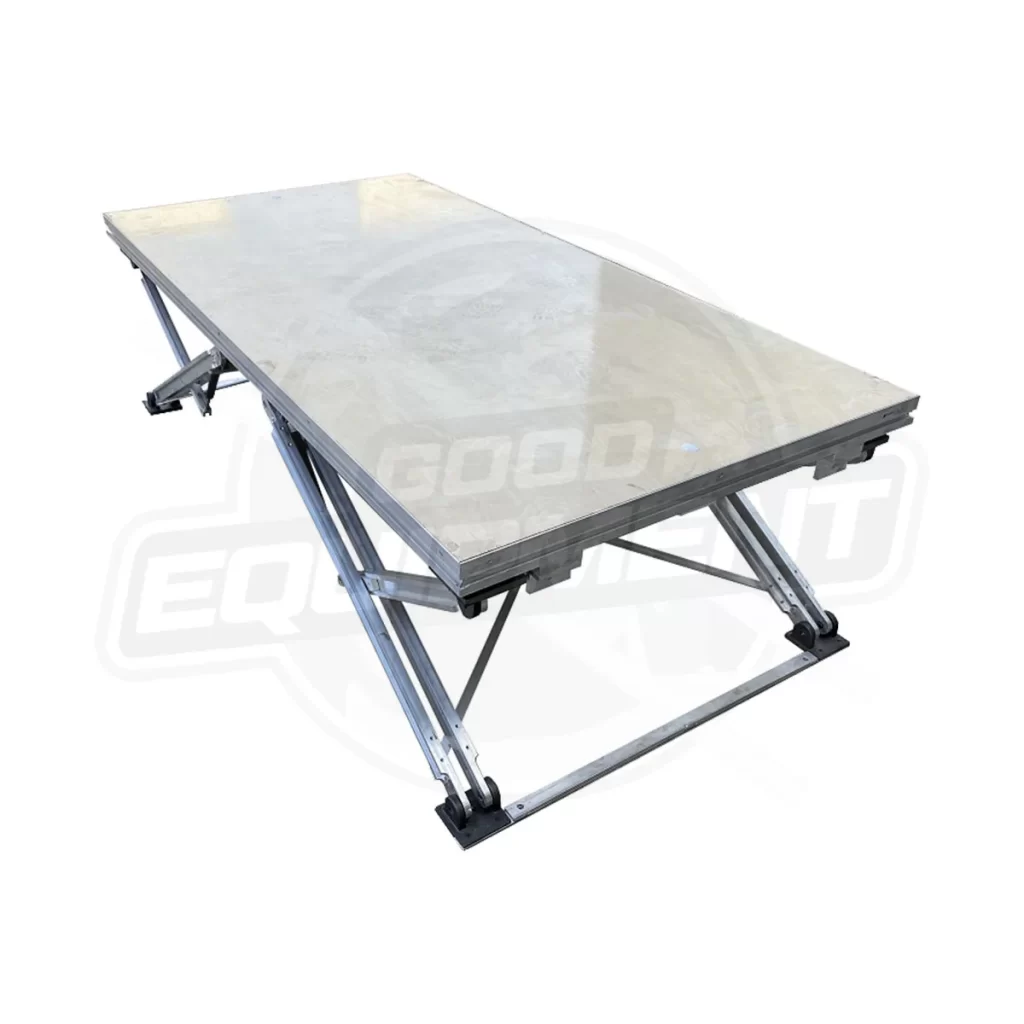

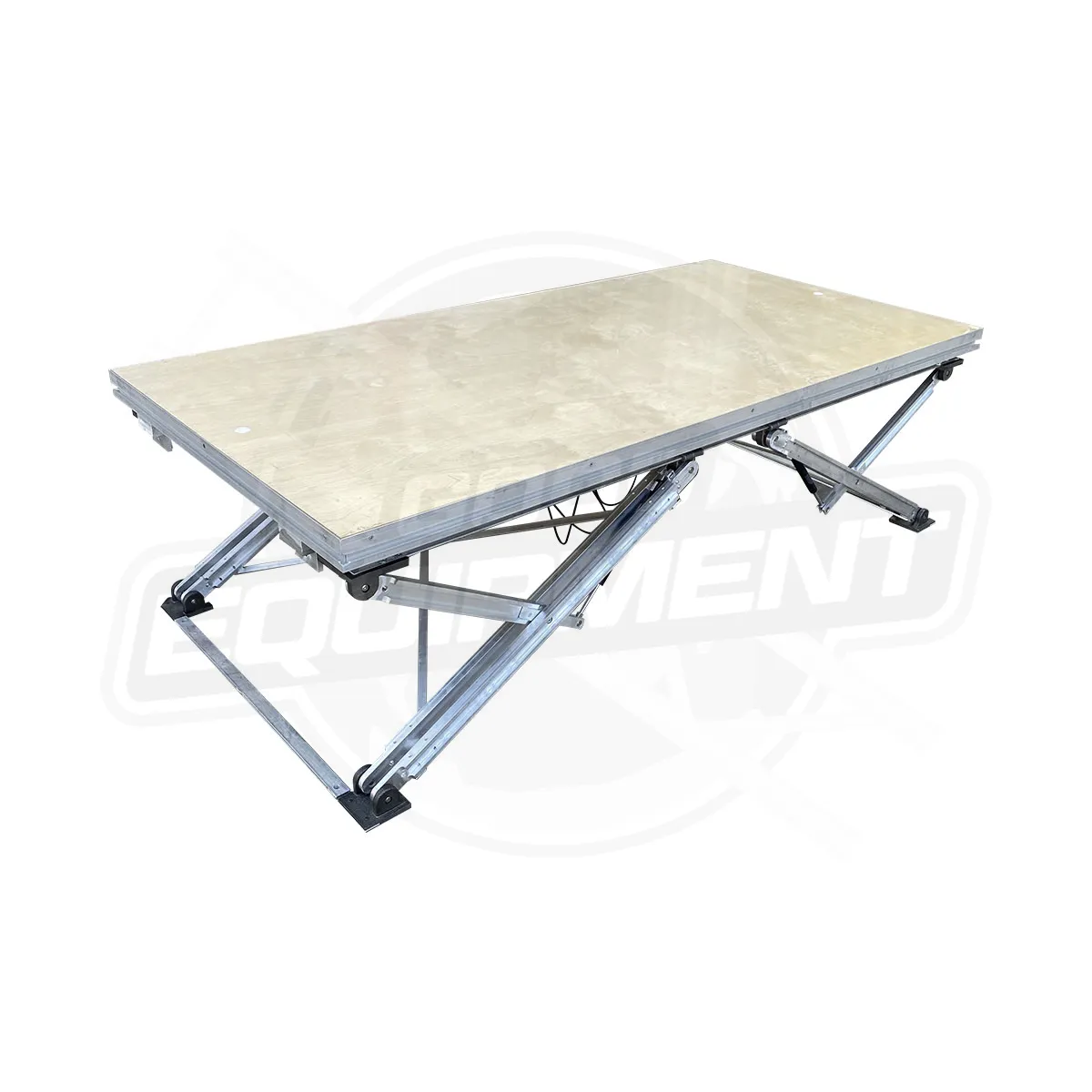

X Hydraulic Stage

Deck size available in 1x1m, 1.22x1.22m, 1x2m. Surface finish available in anti-skip plywood. Customzied deck size is available on request.

Certificate:

Stage Design

X Hydraulic Stage is a support frame suitable for indoor use. The legs are available in several heights and lengths.

The Stage is a heavy-duty stage which has large loading capacity.

Specification

DECK HEIGHT125MM
PLYWOOD25MM
LOADING CAPACITY750KG/M²
FRAME MATERIALEN AW 6061 T6
Technical Data
UDL500KG/M²

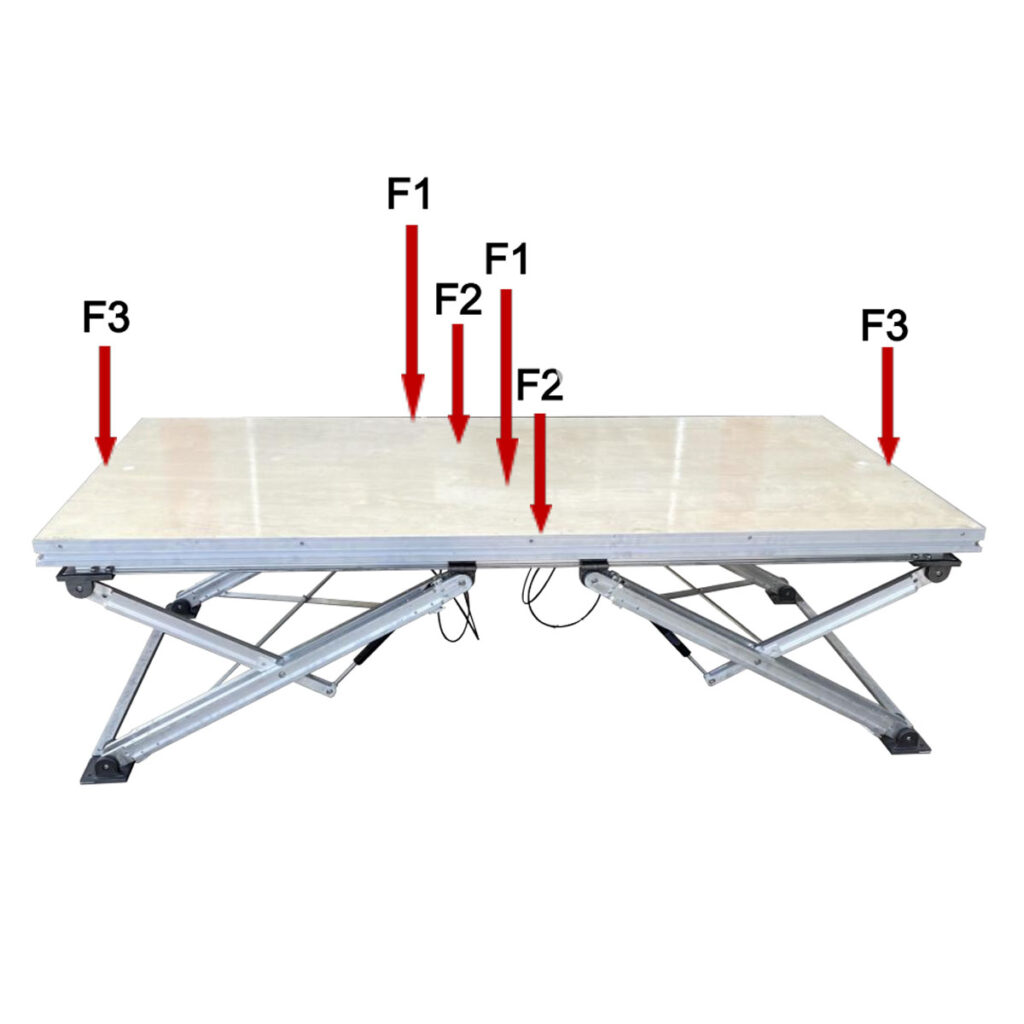

POINTLOAD F1350KG
POINTLOAD F2210KG
POINTLOAD F3500KG
Loading Type
1 X 1 M
1 X 2 M
Platform Size
40 CM
60CM
80CM
100CM
Available Legs
